| Item | Range / Description |
|---|---|
| Base Material | TPU (Thermoplastic Polyurethane) |
| Appearance | Transparent / Milky white film (custom colors available) |
| Thickness | 0.03 mm ~ 0.30 mm (customizable) |
| Width | ≤ 1,500 mm (custom cutting available) |
| Softening Point | 70℃ ~ 120℃ (depending on formulation) |
| Recommended Pressing Temperature | 90℃ ~ 150℃ |
| Recommended Pressing Time | 5 ~ 20 sec |
| Recommended Pressure | 0.2 ~ 0.6 MPa |
| Tensile Strength | ≥ 20 MPa |
| Elongation at Break | ≥ 400% |
| Wash Resistance | ≥ 40 cycles at 40℃ |
| Environmental Standards | RoHS / REACH compliant |
Applications
Textiles & Apparel
Seam sealing for garments, logos, badges, and waterproof zipper bonding
Waterproof taping for outdoor jackets, ski suits, and rainwear
Footwear
Lamination of upper fabrics with lining materials for sports shoes and casual shoes
Heat bonding of decorative shoe components
Automotive Interior
Bonding of seat covers, door panels, and headliner fabrics with foam
Lamination of car carpets and soundproofing materials
Electronics
Lamination of protective covers for phones and tablets
Sealing and bonding for waterproof electronic products
Instructions for Use
Preparation
Ensure the equipment (heat press, ironing machine, or roller laminator) is clean and set to the required parameters.
Make sure bonding surfaces are clean, dry, and free from grease or dust.
Positioning & Pressing

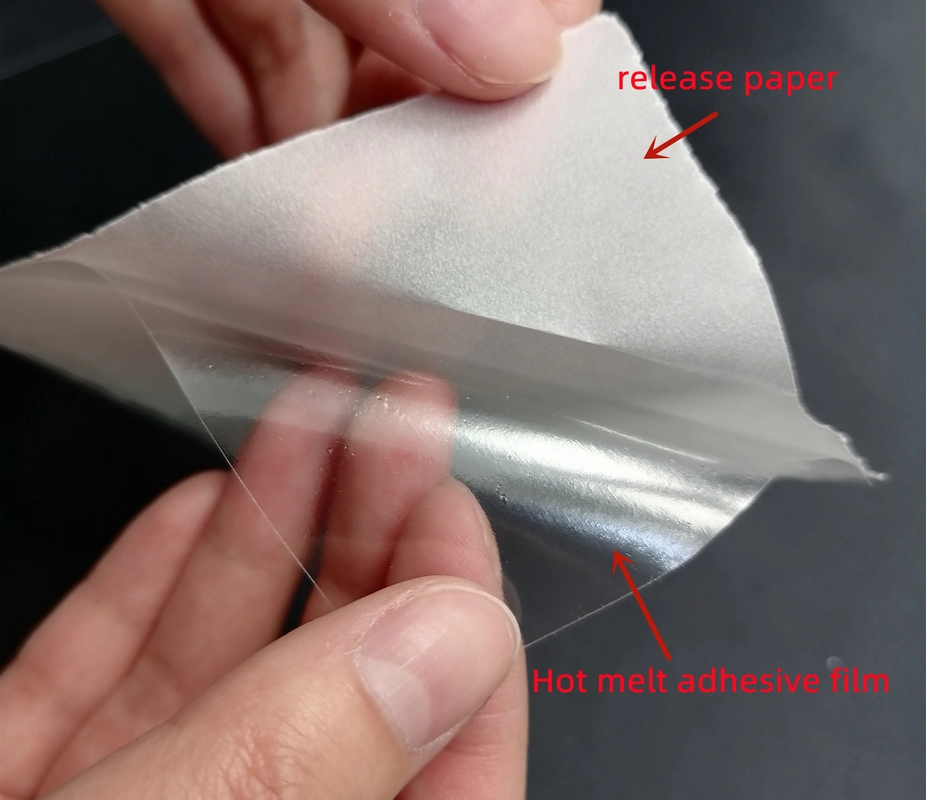

Place the TPU hot melt film between the two substrates or at the bonding area.
Apply heat, pressure, and time according to the recommended parameters.
Cooling & Curing
After pressing, allow the bonded materials to cool to room temperature for complete curing.
Notes
Test on small samples before mass production to determine optimal parameters for each material.
Excessive temperature may cause yellowing or loss of elasticity.
Store in a cool, dry place away from direct sunlight and high temperatures.
